8-way PIC Handheld Programmer Starter Kit

USB Starter kit for 8-way Handheld PIC Programmer

Available mid January.
The 8-way Hand Held PIC Programmer stores up to 8 different programs and PIC microcontroller types. Select the correct program with the 8-way rotary switch and press the button, job done. It reduces mistakes and means that a PC or laptop is not needed to program your PIC target.

This kit includes the USB adapter and software needed to load the programmer.

Starter Kit Software Features

• supports Windows 2000, XP, VISTA, Win7, Win8, Win10, Win11 - 32 and 64-bit versions
• Reads programmer and displays existing program names, file names and target PIC microcontrollers
• Loads Flash, EEPROM, Configuration words and User ID from HEX file
• Low or High Voltage programming modes can be selected
• Device ID match, configuration word verify, EEPROM Data save and other features can be set
• Programmer contents can be saved to file and loaded into other programmers

Starter Kit contents

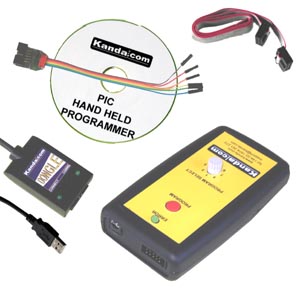

• 8-way Hand Held PIC Programmer
• PC Interface (USB) for loading code and settings
• Ribbon cables with 10-way connector
• 6-way SIL Adapter (MCLR, VCC, GND, PGD, PGC, PGM)


If you need different pin-out, see 10FLEX6 in accessories below

8-way PIC Handheld Programmer Features

• 8-way Handheld PIC Programmer uses 9V PP3 battery or power supply
• Select target program using 8-way rotary switch
• Single button for target programming
• Load it once, program targets for ever
• Reload new programs as often as you need
• Holds up to 8 programs indefinitely
• Low or High Voltage programming modes
• 9V and 12V programming voltages supported
• 10-way DIL and 6 x 1-way flying lead connectors included
• Program and Verify Flash or EEPROM or both
• Program and verify Configuration Bytes and User ID
• Existing EEPROM Data can be saved
• Boot block on larger PIC18FxxK devices can be preserved
• Powers target (up to 150mA) at 3.3V or 5V depending on PIC device and user selection.
• Target can be powered or unpowered
• Dimensions: Metric- 106mm x 58mm x 25mm
• Dimensions: Imperial - 4.5 x 2.5 x 1 inches
• 256KB memory per slot, to support the largest PIC microcontrollers
• New version with SIL adapter not 6-way Flying Lead

Android App

Save programmer contents to a PRG file (which can be encrypted), send it to an Android tablet, smart phone or cell phone and programmer can simply be reloaded with new contents. This gives you much greater flexibility.

See product accessories below for OTG cables that connect your phone to Kanda Dongle.

More Details, Video and App Download

PIC Microcontroller Support

PIC18F microcontrollers

• PIC18Fxxxx
• PIC18FxxJxx
• PIC18FxxKxx (9V VPP)
• Now Supports PIC18FxxK80, PIC18F6xK22/8xK22, PIC18FxxJ50, PIC18F6xK90/8xK90 and PIC18FxxK83
• Supports PIC18FxxQ10, PIC18FxxQ4x, PIC18FxxQ71
• PIC18FxxQ20, PIC18FxxQ83, PIC18FxxQ84
• Supports LF versions

FREE Updates available for new device support.

PIC12F Microcontrollers

• PIC12F1822, PIC12F1840
• PIC12F609, PIC12F615, PIC12F617
• PIC12F635, PIC12F683
• PIC12F1571, PIC12F1572

Plus LF versions

PIC16F Microcontrollers

• PIC16F610
• PIC16F616
• PIC16F627
• PIC16F628
• PIC16F627A, PIC16F628A, PIC16F648A (HVP mode programming only if Reset pin is not reprogrammed as I/O)
• PIC16F631, PIC16F636, PIC16F639
• PIC16F677
• PIC16F68x, PIC16F690
• PIC16F7x
• PIC16F7x7
• PIC16F72x
• PIC16F785
• PIC16F818
• PIC16F819
• PIC16F8x
• PIC16F8xA
• PIC16F87x
• PIC16F873A
• PIC16F874A
• PIC16F876A
• PIC16F877A
• PIC16F88x
• PIC16F91x
• PIC16F15xx
• PIC16F161x
• PIC16F170x
• PIC16F171x
• PIC16F176x
• PIC16F177x
• PIC16F178x
• PIC16F18xx
• PIC16F183xx
• PIC16F19xx
• PIC16F188xx
• PIC16F153xx
• PIC16F184xx
• PIC16F152xx
• PIC16F180xx
• PIC16F181xx
• LF versions are also supported

PIC12F and PIC16F Not supported

• PIC12F629
• PIC16F630
• PIC16F676
• PIC16F5x
• PIC16F505

Notes: Programmers support 9V VPP for PIC18FxxKxx and PIC16F1xxx. LVP mode is supported on PIC microcontrollers with LVP.

Handheld Programmer without Loader

Extra 8-way PIC Handheld Programmers You only need one starter kit to load lots of Handheld PIC programmers.

If you do not want to use the internal 9V PP3 battery, the power supply required is 9V with a 2.1mm Barrel connector, centre positive, 250mA up. Any power supply that meets these specifications can be used, or they are available on the shop.
9V International Power supply for use with this PIC handheld programmer.

---

For an overview of our PIC Programmer range, please see PIC Programmer Overview in new window

---

We can supply custom ICSP connectors to match your PCB header. Please see Custom ISP Connectors
