Handheld AVR Programmer USB Starter Kit

USB Starter kit for 256KB Handheld AVR Programmer

Introduction

Handheld AVR Programmer with 256KB of memory plus USB PC interface and software. Load the programmer from a PC using the USB PC interface and the simple Wizard Software and then you do not need PC again. The Hand Held AVR Programmer is a completely portable AVR ISP and you just plug it into your target boards and program/verify Flash and/or EEPROM and Fuses on your target AVR microcontroller with a single button press. Supports up to 256KBytes of code and data EEPROM.
The PC interface is USB port.

Software Features

• Supports Windows 2000/XP/VISTA, Windows7, Windows8, Windows10, Win11 - 32 and 64-bit
• Simple software for loading programmer
• Easy file selection for Flash and EEPROM
• Select program Flash only or EEPROM only or program both
• Most file formats can be loaded including binary
• Supports ATmega, ATtiny, AT90 AVR microcontrollers
• Simple Fuse and lockbit setting screen or Edit fuses in Hex or binary.
• Select AVR target Voltage, from 0-5V with 0.02V resolution
• Choice to limit the number of program operations allowed
• Click Upload to load your Handheld AVR programmer
• Save all settings to file for easy transfer to another PC
• Program Fuses First feature increases programming speed on new AVRs with 1MHz clock or sets EESAVE fuse
• Load Atmel Studio ELF production files, including fuses and lockbits
• Load programmer from command line
• Android Device App for reloading programmer remotely

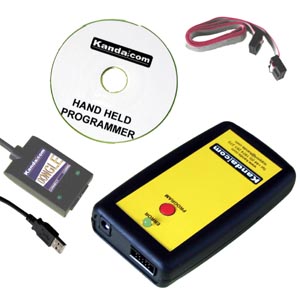

Portable AVR Programmer Starter Kit contents

• AVR Handheld Programmer with 256KB code space
• PC Interface (USB) for loading code and settings
• Ribbon cables with 10-way connector -see Product Accessories below for other adapters
• Software Download

Handheld AVR Programmer Features

• AVR Handheld Programmer uses 9V PP3 battery or power supply
• Single button operation to program target
• Load it once, program targets for ever
• Reload new programs as often as you need to
• Supports all Fuse and Lock bits
• Program/Verify Flash or EEPROM or both
• Supports programming from 1.8 - 5.5V, depending on target Vcc
• Can power target device (up to 150mA) or can draw power from target
• Dimensions: Metric- 106mm x 58mm x 25mm
• Dimensions: Imperial - 4.5 x 2.5 x 1 inches
• 256KB of memory space for code and EEPROM data
• For ATxmega support see HH0110X
• For 10DIL6, JTAG, Flying lead and other adapters, see Product Accessories below

Android App

Save programmer contents to a PRG file, send it to an Android device and programmer can simply be reloaded with new contents. This gives you much greater flexibility.

More Details, Video and App Download

AVR Microcontroller Support - AVRISP

• Older AVR: AT90S1200, AT90S2313, AT90S2323, AT990S2333, AT90S2343
• AT90S4414, AT90S4433, AT90S8515,AT90S8535, ATmega103
• AT90CAN128, AT90CAN32, AT90CAN64
• AT90PWM2/3, AT90PWM316
• AT90USB1286, AT90USB646
• ATmega128, ATmega1280, ATmega1281, ATmega1284, ATmega128RFA1
• ATmega16, ATmega161, ATmega162, ATmega163, ATmega164, ATmega165, ATmega168, ATmega169
• ATmega16M1, ATmega16U2, ATmega16U4
• ATmega2560, ATmega2561 (255KB flash memory space available)
• ATmega32, ATmega323, ATmega324, ATmega325, ATmega3250, ATmega328, ATmega329
• ATmega3290, ATmega32C1, ATmega32M1, ATmega32U2, ATmega32U4, ATmega32U6
• ATmega48, ATmega64, ATmega640, ATmega644, ATmega645, ATmega6450, ATmega649
• ATmega6490, ATmega64C1, ATmega64M1
• ATmega8, ATmega8515, ATmega8535, ATmega88, ATmega8U2
• ATtiny13, ATtiny1634, ATtiny167
• ATtiny2313, ATtiny24, ATtiny25, ATtiny26, ATtiny261
• ATtiny4313, ATtiny43U, ATtiny44, ATtiny45, ATtiny461, ATtiny48
• ATtiny84, ATtiny85, ATtiny861, ATtiny87, ATtiny88
• ATtiny441, ATtiny841
• All P (PicoPower), PA, PB, V, L and A AVR microcontrollers are supported.

JTAG support is all AVR devices with JTAG interface, with JTAG Adapter, not supplied as standard.

For ATxmega PDI support, UPDI interface and 512KB memory for ATmega2561, see HH0110X

ATtiny TPI Support

ATtiny10, ATtiny102, ATtiny104, ATtiny20, ATtiny4, ATtiny40, ATtiny5, ATtiny9
Older Programmers do not support TPI.. Programmers manufacturered before March 2017 cannot support TPI.

Accessories and Adapters

Extra USB Hand Held AVR Programmers You only need one starter kit for as many programmers as you require

If you do not want to use the internal 9V PP3 battery, the power supply required is 9V with a 2.1mm Barrel connector, center positive, 300 mA minimum. These are available on the shop.
9V International Power supply for use with this programmer.

Available adapters

We now have adapters to convert from the standard Kanda 10-way AVR ISP lead to different 6-way headers and different pitch - 1.27mm or 2.0mm.
Full List of Adapters Available

Here are some popular adapters.

6-Way DIL adapter

6 x 1-way leads

6-Way Micromatch connector

1.27mm Adapter

JTAG Interface
See JTAG Adapter for ready made JTAG adapter

See JTAG Pinouts PDF file for details of pin wiring.

Custom Adapters
If you need any other type of connector, we can supply all sorts of custom adapters - see Custom Connectors

Other Information

A Quick start guide with setup details can be downloaded here.

This programmer should be used with Atmel recommended AVR ISP circuits.
See Guide to AVR ISP Circuits for schematics of recommended AVR ISP circuits (new window).

Overview of Kanda AVR Programmer Range
