Wellon Socket Adapter for TSOP48 Packages
TSOP48 Universal socket adapter
Converts from DIL ZIF socket to devices in TSOP48 (0.5mm pitch 20mm width) (IC191-0482-004)
Can be used...
Shipping to United States
Recorded Airmail: $15.00
Fedex Express: $29.00
Order Code
WL-TSOP48-U2
Price: $69.00
In Stock
Related Products
Product Details | ![Top of Page](/graphics/TopOfPage_165_40.png) |
TSOP48 Universal socket adapter
Converts from DIL ZIF socket to devices in TSOP48 (0.5mm pitch 20mm width) (IC191-0482-004)
Can be used with Wellon and other programmers, and for devices in 48-pin TSOP packages.
This socket is mainly for use with older VP-280, VP-580 Programmers. New VP-x90 use WL-TSOP48-U1 socket. This socket can be converted to U1 by removing a link.
Please see Full device support lists for the socket required for your device and programmer
Links from
Wellon Overview for device support lists.

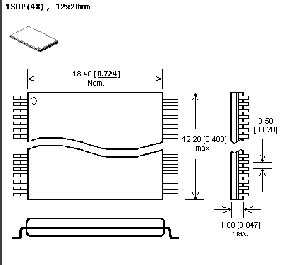

Package Description
Pin Wiring
![TS~OP48 pinout diagram](/images/wl-tsop48-u2-pin.jpg)
Ordering Information
Ordering Information |
Order Code: WL-TSOP48-U2 |
Price: $69.00 |
Shipping to United States: | Recorded airmail - $15.00 | Fedex Express - $29.00 |
