Bluetooth NRF51822 Development Kit

Kanda - Waveshare Bluetooth NRF51822 Development Kit, BLE400
  • Evaluation Kit for NRF51822 Bluetooth 4.0 Modules
  • Includes NFR51822 Module
  • ARM based module with expansion headers
  • Onboard battery holder, multi power supplies are available
  • Needs separate Programmer/Debugger
Shipping to United States
Recorded Airmail: $15.00
Fedex Express: $29.00
Order Code
W-NRF51822-KIT
Price: $15.99
Discontinued

No Replacement





Product DetailsTop of Page

Development Kit for Bluetooth 4.0 Wireless Modules

This Waveshare kit has a BLE400 motherboard fitted with an NRF51822 Bluetooth module. It is an ideal and low cost way of evaluating these Bluetooth 4.0 modules. These feature ARM Cortex-M0 32 bit processor, 128 bit AES HW encryption, 256kB flash, 32kB RAM, SPI, I2C, UART and 10 bit ADC to give you all the features your application needs in a single package.

Motherboard Specification

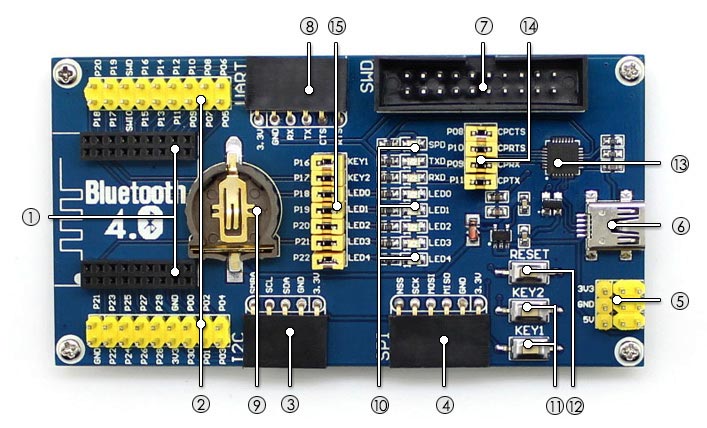

Waveshare motherboard layout
  1. Wireless module connector: for easily connecting modules like Core51822
  2. MCU pins expansion connector
  3. I2C interface
  4. SPI interface
  5. 5V/3.3V power input/output: usually used as power output, also common-grounding with other user board
  6. USB connector: USB TO UART via onboard convertor CP2102
  7. Debugging interface
  8. UART interface
  9. Battery holder
  10. User LEDs
  11. User keys
  12. Reset button
  13. CP2102
  14. USB TO UART jumper
  15. LEDs and Keys jumper

The motherboard dimensions are 90 x 50mm (3.5" x 2").
Full code examples and documentation are available, see link below. Developers can use 32KB free edition of Keil-ARM-MDK or completely free GCC and Eclipse solution.

Motherboard does not have built-in programmer and debugger.
See ARM Debugger

nRF51822 Module Features

  • 2.4 GHz multiprotocol RF transceiver
  • ARM� Cortex�-M0 32 bit processor
  • 128 bit AES HW encryption
  • 256kB flash & 32kB RAM
  • Programmable Peripheral Interconnect (PPI)
  • Digital interfaces: SPI, I2C, UART
  • 10 bit ADC
  • Programmable output power: -20 to +4 dBm
  • Independent application development and protocol stack
  • Fully compatible with NRF24L series
  • Pinout compatible with NRF51xxx series
  • Global separate power management
  • Operating voltage: 1.8 V ~ 3.6 V
  • Ideal for mobile phone connections

Core51822 Module Expansion Header Layout

Waveshare expansion header layout

Applications

  • Wearable devices
  • Bluetooth intelligent application
  • Mobile phone accessories
  • RFID labels
  • Smart home appliances
  • Industry control
  • Data acquisition system
