STS1600 16-port Terminal Server

Connects 16 RS232 serial devices to 10/100Base-T network.
Supports PC cards such as ATA memory, modem and wired/wireless LAN card
Configuration via Web, Telnet/SSH or serial port
Supports Dynamic DNS protocol for DSL connection to broadband Internet
Easy-To-Use customization support: User space, Library and Scripts (network/port access)
Powerful security support, SSL/TLS and data encryption

Shipping to United States
Economy: Not Available
Express: $46.50

Order Code
STS1600

Price: $1,195.00

Discontinued

No Replacement

Product Details

16-Port Terminal Server

These 16-port smart terminal servers are ideal for connecting serial ports to Ethernet or DSL phones for various application areas such as Retail/POS, Industrial Automation and facility management including logging. They are easy to setup and have powerful security, Ethernet modem, Comm Port redirector and much more, including user scripts.

Main Features

Connects legacy serial devices to 10/100Base-T Ethernet network
Includes Virtual Comm Port redirector - see below
Supports RS232 based serial devices, up to 230Kbps speed
Powerful security support, SSL(Secure Socket Layer), RC4 and 3DES
An example program for Windows and Linux can be downloaded here.
Supports powerful Ethernet modem function Dynamic DNS and PPPoE protocol for DSL connection to broadband Internet
Configuration via Web, Telnet or serial port
TCP, DCHP and other network interfacing methods
Management software for configuration and administration included
Free Unix TTY redirector software version
User scripts for custom configuration can be uploaded to the STS device, via Telnet

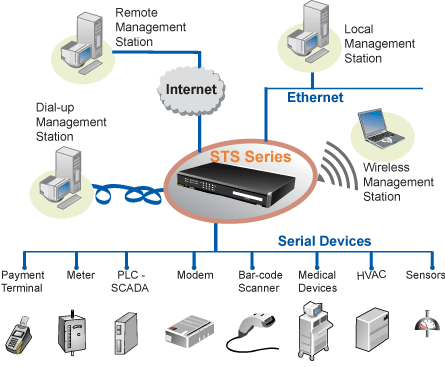

Application Diagram

Serial Terminal Server for Serial to Ethernet

Extra Features

TCP/UDP Multicasting
Serial device data logging (Port Logging)
PC Card Support
Serial Device Data Encryption
Serial device data event handling (port Event Handling)

View User manual (2.5MB)

16-port Smart Terminal Server
Quick start guide
CD-ROM with Management software and Comm Port Redirector
Cable kit
External 110V or 230V power supply or power cord
Mounting kit

Comm Port Redirector

The product comes with a full version of Tactical Serial/IP Redirector software, with unlimited license. This creates virtual COM ports so that your applications can immediately use a networked device/terminal server's serial ports as if they were local serial ports. This significantly reduces development time.

Details of COM Port Redirector

Com port redirector for serial device server

Detailed Specification

	STS400	STS800	STS1600
CPU	MPC 855T 32-bit RISC CPU, 50Mhz
DRAM	64 MB
Flash	8 MB ( 1 MB of user programmable space )
Serial Interface	4-port RJ45 connector	8-port RJ45 connector	16-port RJ45 connector
	Serial speeds 75bps to 230Kbps
	Flow Control: Hardware, Software
	Signals: RS232: Rx, Tx, RTS, CTS, DTR, DSR, GND
Network Interface	10/100Base Ethernet with RJ45 Ethernet connector
	Supports static and dynamic IP address
Network Protocols	ARP, IP/ICMP, DNS, Dynamic DNS SMTP with/without Authentication, pop-before SMTP, DHCP client, NTP, PPPoE TCP, UDP, SSL v2 & v3, TLS v1, RFC-2217 SSH v1 & v2,Telnet HTTP, HTTPS, SNMP v1 & v2
	Serial Port Access protocol : Telnet, TCP, UDP, SSL v2 & v3, TLS v1, RFC-2217
Embedded Linux	File System : CRAMFS, JFFS2, NFS, EXT2, VFAT/FAT Utilities : Bash : OS shell command busybox : Linux normal command utility collection shadow : User/Password management utility telnet : Telnet client program ftp : FTP client program SCP : Secure file transfer client program iptables : Firewall service manager Utilities only for Super Series : ss.apply, ss.filter, ss.portmenu, ss.channel, ss.logger, ss.save, ss.configuration_manager, ss.port, ss.tcp, ss.modemmenu, ss.server_lock, ss.connect, ss.nfs_mount, ss.edit, ss.port_factory_default, port[number]_reset Daemon : snmpd : snmpd agent daemon telnetd : Telnet server daemon inetd : TCP server manager program goahead : Web server daemon sshd : Secure shell server Tool Chain : Gcc ( V2.95.3 ) : C/C++ PC Cross Compiler GDB ( V5.0.0 ) : Source Level Debug Server Glibc ( V2.2.3 ) : POSIX standard
PCMCIA	ATA flash memory card 802.11b Wireless LAN card 10/100 Base-TX LAN Card Modem card
Security	User ID & Password
	HTTPS
	Secure terminal interface: SSH
	Data Encryption: SSLv2/v3, TLS v1, 3DES and RC4
	IP address filtering
	SCP
Modem emulation	Full support for AT commands
Management	Web Telnet/SSH Serial console port HelloDevice Manager O/S support: Windows 98/ME/NT/2000/XP
	System log and statistics: System logging to SYSLOG/NFS server or CF card Logging by email support Full-featured system status display support
	Firmware: Stored in Flash memory and Downloadable via serial console or telnet or web
Diagnostic LED	Power Ready 10/100 Base Link, Act Serial Rx, Tx for each port
Power	5VDC1.5A @ 5V		110~250 VAC, 50/60Hz 43W
Environmental	Operating temperature: 0'C to 50'C
	Storage temperature: -20'C to 66'C
	Humidity: 90% Non-condensing
Physical Properties	245x 153x 30 (mm) 9.6 x 6 x 1.2 (in.)		432 x 193 x 44.5 (mm) 17 x 7.6 x 1.75 ( in.)
	Weight: 1.5kg		Weight: 2.8kg
MTBF		17.08 Years	8.93 Years
Approvals	FCC Part 15 Subpart B, Class A EN61000-3-2, EN61000-3-3 EN60950-1 EN55022 EN55024 MIC
Warranty	5-year Limited Warranty

Ordering Information

Ordering Information	Order Code: STS1600	Price: $1,195.00
Express shipping to United States :	$46.50

No Replacement
