MICRO-X Bluetooth UART Module

Kanda - MICRO-X and STK200-X Bluetooth UART Module
  • Bluetooth Module with On-board antenna
  • Appears as serial port
  • Easy connection to MICRO-X or STK200-X
  • Supplied with cables and mounting pillar
  • 3.3V operation
Shipping to United States
Recorded Airmail: $15.00
Fedex Express: $29.00
Order Code
MICRO-X-BLUETOOTH
Price: $12.99
Discontinued



Related Products








Product DetailsTop of Page

MICRO-X and STK200-X Bluetooth UART Module

Bluetooth serial port convertor that connects to serial port of the PIC or AVR microcontroller. The module appears as a UART on the microcontroller and standard UART code will communicate with it.

Example PIC C UART Code

Example AVR C UART Code


Just connect the 5 wires supplied to the UART Port on the MICRO-X board.

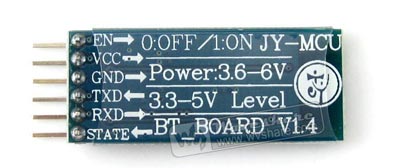

Bluetooth module pinout

The module is 3.3V only so you will need 1K series resistors to connect to 5V system.
First, configure the module using the serial port and AT command set. Run your PC Bluetooth software and search for devices. When it finds the module, open a Bluetooth serial port and you will have a normal serial port connection.

Documentation




This opens in a new window.


 Top of Page




Ordering Information

Ordering Information Order Code: MICRO-X-BLUETOOTH Price: $12.99
Shipping to United States: Recorded airmail - $15.00 Fedex Express - $29.00
