AT17 Programming Board
- Used with EEISP-U ISP programmer
- Supports AT17LVxxx and AT17Fxxx devices
- 20-pin PLCC and 8-pin SOIC sockets fitted
- 3.3V or 5V supply
- Powered by supplied mini-USB lead
Shipping to United States
Recorded Airmail: $15.00
Fedex Express: $29.00
Order Code
EE-BOARD-AT17
Price: $49.00
In Stock
Related Products
Product Details | |
AT17 Programming Board
Programming board with sockets for AT17 FPGA configurators in 20-pin PLCC package and 8-pin SOIC package. The EEISP-U ISP programmer is required to use this board and connects to the header on the board making this a socket programmer.
Power
Board is powered by the supplied mini-USB lead. Board voltage can be set to 3.3 or 5V using a jumper.
PLCC Socket

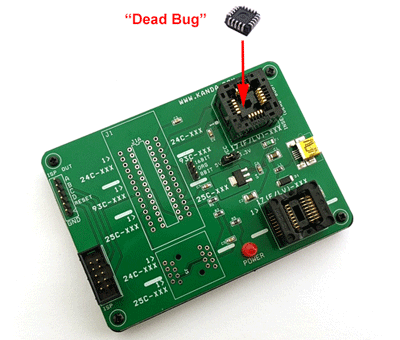

This socket is for all AT17 configurator EEPROMs in 20-pin PLCC package. It is a "Dead Bug" socket, which means that the device is fitted upside down. This layout gives better device insertion and removal than cheap PLCC sockets that can easy damage device pins. Just press socket rim and device will pop out.
SOIC Socket
This is a 16-pin socket but it will accept all 8-pin AT17 Devices. Position of where pin 1 should be is marked on the board.
Ordering Information
Ordering Information |
Order Code: EE-BOARD-AT17 |
Price: $49.00 |
Shipping to United States: | Recorded airmail - $15.00 | Fedex Express - $29.00 |
