AVR 10-way to 6 Flying lead adapter

Kanda -  10-way to 6 Flying lead adapter for Kanda AVR and EEPROM programmer, EEPROM and  AVR

AVR 10-Way to 6 Flying lead Adapter
This product is setup for AVR microcontrollers and Serial EEPROMs and there is a different version for PIC microcontrollers.
An adapter for standard Kanda 10-way programmer output to a 6...



Shipping to United States
Recorded Airmail: $15.00
Fedex Express: $29.00
Order Code
10FLEX6-A
Price: $15.00
In Stock



Related Products








Product DetailsTop of Page

AVR 10-Way to 6 Flying Lead Adapter


This product is setup for AVR microcontrollers and Serial EEPROMs.

A version for Kanda PIC programmers is here:
PIC microcontroller version

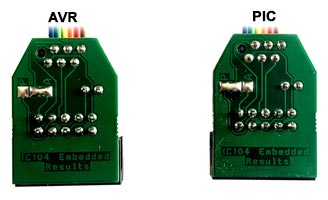

The only difference between the 2 versions is connection of one wire is set differently, using a solder blob on the rear of the PCB. This can be changed easily with a soldering iron

PIC and AVR difference It is an adapter from the standard Kanda 10-way programmer output to a 6 by 1-way format. The 6 flying leads are colour coded and the headers are 1-way female headers designed to plug on to standard 0.1" (2.54mm) pitch pin headers.

The pins available are VCC and GND plus 4 signal lines, which vary depending on the microcontroller or EEPROM family being used.

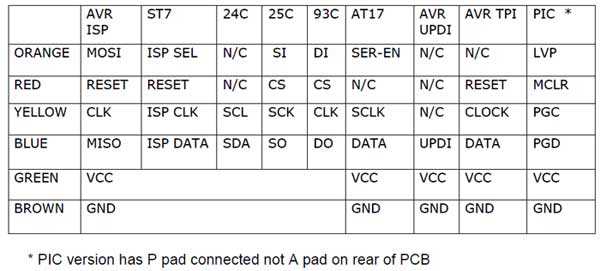

10FLEX6 device connections



 Top of Page




Ordering Information

Ordering Information Order Code: 10FLEX6-A Price: $15.00
Shipping to United States: Recorded airmail - $15.00 Fedex Express - $29.00
