New Handheld AVR Programmer Parallel Port Starter Kit

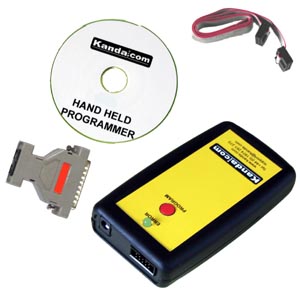

Kanda - Handheld AVR Programmer Parallel Port Starter Kit

Parallel Port Starter kit for 256K Handheld AVR Programmer
Parallel Port version has been replaced by USB version. Existing parallel port programmers can easily be converted to USB...



Product Details
Shipping to United States
Recorded Airmail: $15.00
Fedex Express: $29.00
Order Code
HH0110P
Price: $179.00
Discontinued



Related Products



Related product



Handheld AVR Programmer USB Starter Kit








Product DetailsTop of Page

Parallel Port Starter kit for 256K Handheld AVR Programmer


Parallel Port version has been replaced by USB version. Existing parallel port programmers can easily be converted to USB so can continue to be used with USB PC dongle.

USB dongle is available separately, see related products above.

Handheld AVR Programmer with 256KB of memory plus Parallel Port PC interface and software. Load the programmer from a PC using the PC interface and the simple Wizard Software and then the PC is not needed again. The AVR Hand Held Programmer is completely portable and you just plug it into your target PCB and program/verify Flash and/or EEPROM and Fuses on your target AVR microcontroller with a single button press. Supports up to 256KBytes of code and data EEPROM.
The PC interface is parallel port and only works on 32-bit Windows. A plug in parallel port card is available if your PC does not have a Parallel Port
PCI Serial and Parallel Card

A USB version of this programmer is available: USB Handheld AVR Programmer Starter Kit
Software Features
  • supports Windows 95/98/2000/NT/ME/XP/Vista/7/8, 32-bit only
  • 32-bit OS only
  • simple Wizard software for loading programmer
  • straightforward file selection for Flash and EEPROM
  • select program Flash only or EEPROM only or program both
  • most file formats can be loaded
  • Fuse and lockbit setting screen to easily set fuses
  • select AVR target Voltage, from 0-5V
  • click finish to load your AVR programmer
Starter Kit contents
  • Hand Held AVR Programmer with 256K code space
  • PC Interface (parallel port, LPT1)
  • Programmer adapter for loading code and settings
  • Ribbon cables with 10-way connector
  • Software CD
    Handheld AVR Programmer Features
    • Hand-held AVR Programmer includes 9V PP3 battery
    • Can be used with power supply
    • Single button programming operation
    • Once loaded it programs targets for ever
    • Reload new programs as often as you need
    • Holds program code indefinitely
    • Supports all Fuse and Lock bit settings
    • Program/Verify Flash or EEPROM or both
    • Supports programming from 2.7 - 5.5V, depending on target Vcc
    • Can power target device (up to 150mA) or can draw power from target
    • Dimensions: Metric- 106mm x 58mm x 25mm
    • Dimensions: Imperial - 4.5 x 2.5 x 1 inches
    • 256KB code space
    This programmer should be used with Atmel recommended ISP circuits.
    See Guide to AVR ISP Circuits for schematics of recommended AVR ISP circuits (new window).

    AVR Microcontroller Support
    Supports all Low Voltage (L, V, P, PA) AVR Devices as well
    • AT90S1200, AT90S2313, AT90S2323, AT90S2343, AT90S4433, AT90S4414, AT90S8535, AT90S8515
    • ATmega16, ATmega161, ATmega162, ATmega163, ATmega164P, ATmega165, ATmega168, ATmega169
    • ATmega32, ATmega323, ATmega324P, ATmega325, ATmega3250, ATmega329, ATmega3290
    • ATmega48, ATmega88, ATmega8, ATmega8515, ATmega8535
    • ATmega64, ATmega644, ATmega644P, ATmega645, ATmega6450, ATmega649, ATmega6490, ATmega640
    • ATmega103, ATmega128, ATmega1280, ATmega1281, ATmega2560, ATmega2561
    • ATtiny12, ATtiny15, ATtiny22, ATtiny26
    • ATtiny13, ATtiny2313, ATtiny24, ATtiny25, ATtiny44, ATtiny45, ATtiny84, ATtiny85
    • AT90CAN32, AT90CAN64, AT90CAN128, CANDIPM162, CANDIP8515, AT90PWM2/3, AT90PWM316
    Extra 256K Hand Held AVR Programmers You only need one starter kit for as many programmers as you require
    If you do not want to use the internal 9V PP3 battery, the power supply required is 9V with 300mA minimum and centre positive 2.1mm Barrel connector. These are available on the shop.
    9V International Power supply
    6-Way adapters
    We now have adapters to convert from the standard Kanda 10-way header to different 6-way headers.
    6-Way DIL adapter
    6 x 1-way leads
    6-Way Micromatch connector

    A Quick start guide with recommended circuits and setup details can be downloaded here.
    USB Version
    USB Handheld AVR Programmer Starter Kit

    See Overview of Kanda AVR Programmer Range

    See Guide to AVR ISP Circuits for schematics of recommended AVR ISP circuits (new window).
