USB Handheld PIC Programmer
 |
Order Code PIC-HH0120 |
| Price: €125.10 | |
| In Stock | |

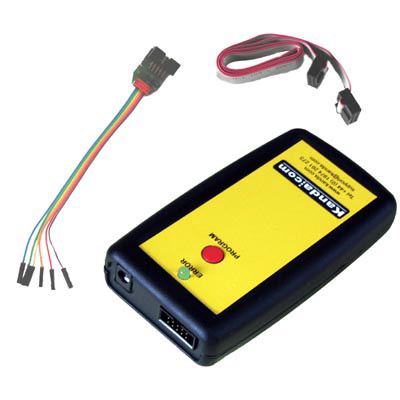

Hand Held PIC Programmer for PIC Microcontrollers
Hand Held Field and Production PIC Programmer for standalone programming of PIC microcontrollers (PIC16F and PIC18F), with 256 KB of memory. Just load the Handheld PIC Programmer from a PC using the Hand Held PIC Programmer USB Starter Kit. Now you just plug it into your target board and program and verify Code, Data, User ID and Configuration Bytes with a single button press. It can power your target PIC microcontroller using internal battery or 9V external Power supply.
This Handheld PIC Programmer is ideal for non-technical operatives as no mistakes can be made - just press the button and the correct code MUST be loaded. You can set it to program the whole PIC microcontroller or just the Data memory (PIC16F only). It supports PIC16F and PIC18F microcontrollers.
Now supports PIC18FxxJxx and PIC18FxxKxx PIC microcontroller families. PIC16F182x and PIC16F193x are also supported.
This Handheld PIC Programmer has USB port firmware loaded and is designed for USB. If you need Parallel Port programmers, please order PIC-HH0120P.
Important note
This product is just the handheld portable programmer without PC loader!Unless you already have a starter kit, you will not be able to load it.
Please purchase starter kit instead
Handheld Programmer Starter Kit
Operating Systems
Windows 2000, XP, Vista, Windows7
32 and 64-bit versions
Handheld PIC Programmer Features
- Hand-held PIC Programmer uses 9V PP3 battery or power supply
- Single button operation
- Load it once, program targets for ever
- Reload new programs as often as you need
- Holds program code indefinitely
- Low or High Voltage programming
- 10-way DIL and 6 x 1-way flying lead connectors included
- Program/Verify Flash or EEPROM or both
- Programs and Verifies Configuration words
- Existing EEPROM data can be preserved
- Boot Block can be preserved on PIC18FxxK devices
- Can power target device (up to 150mA) at 3.3V or 5V
- Some families (PIC18FxxJ and some PIC18FxxK) are low voltage only (at time of writing) and so programmer uses 3.3V for them
- Note: Some PIC16Fxxx devices need 4.5V minimum for chip erase, so programmer always uses 5V for these
- Target can be powered or unpowered
- Connections needed are PGC, PGD, MCLR and GND. VDD and PGM are optional
- Dimensions: Metric- 106mm x 58mm x 25mm
- Dimensions: Imperial - 4.5 x 2.5 x 1 inches
- 256KB memory
- Limit number of Programs allowed, if needed
PIC Microcontroller Support
PIC18F microcontrollers
- PIC18Fxxxx
- PIC18FxxJxx
- PIC18FxxKxx (9V VPP)
- Now supports PIC18FxxK80, PIC18F6xK22/8xK22 and PIC18F6xK90/8xK90
- Also supports LF versions
PIC12F Microcontrollers
- PIC12F1822, PIC12F1840
- PIC12F609, PIC12F615
- PIC12F635, PIC12F683
PIC16F Microcontrollers
- PIC16F627
- PIC16F628
- PIC16F627A, PIC16F628A, PIC16F648A (HVP mode programming only if Reset pin is not reprogrammed as I/O)
- PIC16F631, PIC16F636, PIC16F639
- PIC16F677
- PIC16F68x, PIC16F690
- PIC16F7x
- PIC16F7x7
- PIC16F72x
- PIC16F785
- PIC16F818
- PIC16F819
- PIC16F8x
- PIC16F8xA
- PIC16F87x
- PIC16F873A
- PIC16F874A
- PIC16F876A
- PIC16F877A
- PIC16F88x
- PIC16F91x
- PIC16F946
- PIC16F193x
- PIC16F182x
- PIC16F15xx
Not all devices have LVP mode
PIC16F72x, PIC16F182x and PIC16F193x need 9V VPP. Old yellow box programmers only supply 12.5V VPP. New programmers support 9V VPP
Not supported
- PIC16F630
- PIC16F676
- PIC16F5x
- PIC16F505
Important
This product is just the programmer, without PC loader
You will need a Starter Kit which includes a USB Dongle, to load this Handheld PIC Programmer. One Starter Kit will allow you to load as many Hand Held PIC Programmers as you want. The Starter kit comes complete with one Handheld PIC Programmer and is on Special Offer.
New Handheld PIC Programmer USB Starter Kit
If you do not want to use the internal 9V PP3 battery, the power supply required is 9V with a 2.5mm Barrel connector. These are available on the shop.
9V International Power supply for use with this PIC programmer.
PIC Programmer Range
For an overview of our PIC Programmer range, please see PIC Programmer Overview in new window
