FPGA Training Kit

Name: FPGA Training Kit
SKU: FPGA-TRAIN
Price: 189 USD
Availability: Discontinued

Kanda - FPGA Development and Training Kit

FPGA Training Kit
A comprehensive Altera FPGA development board, with USB Blaster programmer, Cyclone II FPGA board and motherboard with a wide range of peripherals. All development software, handbooks, training modules are free...

Product Details

Shipping to United States
Recorded Airmail: $18.50
Fedex Express: $32.50

Order Code
FPGA-TRAIN

Price: $189.00

Discontinued

No Replacement

Product Details

Altera Cyclone II USB FPGA Starter Kit

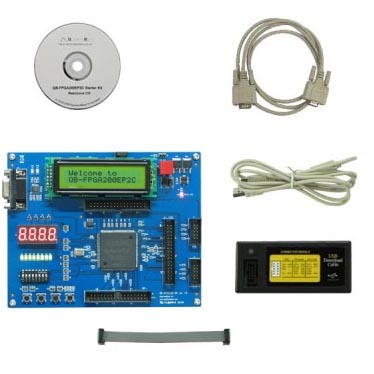

All you need to get going with FPGA devices. A FPGA development motherboard with a daughter-board carrying Cyclone II Altera FPGA. The kit includes FPGA USB blaster for programming and debugging plus user guides and test code for the boards. All software needed including Quartus II development environment with VHDL compiler, FPGA design tutorials, simulation tools and fitters plus NIOS embedded processor are available for free download.

Ideal for FPGA design, development and training from FPGA basics to full embedded design. This evaluation kit uses Altera Cylcone II EP2C8Q208C8 FPGA (8250 LE) mounted on a daughter board with 64 MBit SDRAM and 16Mbit Flash RAM included.

Features

Whether you want to learn about FPGA, need to train others about FPGA or have a specific embedded design you want to implement, this evaluation kit has all you need.

Hardware

The FPGA is mounted on a daughter board, which can be used independently or with motherboard.
Daughter board has 64 Mbit of SDRAM with 16Mbit flash chip configuration for NIOS embedded processor development
Fitted with Cyclone Ii 208 pin FPGA (see below)
SD card interface
8 multiplexed 7-segment displays
LEDs, 8 x 8 dot matrix display and interface for 1602 and 12864 LCDs
Support for real-time clock (RTC), with DS1302 chip
DIP switches, toggle switches, reset switches
Buzzer and temperature sensor
VGA, RS232 and RF interfaces
IR interface and remote control
ADC and DAC chips
EEPROM, 24LC04 chip (512 * 8bit) I2C interface
PS / 2 interface, for PS / 2 keyboard and mouse support
Configuration chip for AS interface
All pins brought out
High quality boards with gold contacts.
USB blaster cable included
50MHz clock

FPGA Details

Cyclone II EP2C8 series FPGA (EP2C8G208C8N) with

Logic Elements 8,256
M4K RAM Blocks (4 kbits + 512 Parity Bits) 36
Embedded Memory (Kbits) 162
18-Bit x 18-Bit Embedded Multipliers 18
PLLs 2
Maximum User I/O Pins 182
Differential Channels 77

Free Downloads

Alteraï¿½ Quartus II software for Cyclone II FPGA, with VHDL, Verilog and schematic entry, compiler, simulator and device fitters
SignalTap II Logic Analyzer to capture and display real-time signal behavior
NIOS Embedded Processor Development software
SOPC development
Complete help files and handbooks
On line tutorials and training courses

CD Contents

USB Byte Blaster software
Board guides, test files and components
FPGA introduction handbook

USB Blaster Cable (with 10-way interface lead and USB cable)

FPGA Cyclone II EP2C8 daughter board
FPGA development motherboard or expansion board
2 x Transparent protective plates with brass spacers
5V/2A power supply
Nul-modem serial cable
CD-ROM

FPGA Design Process using FPGA Starter Kit

Use the editor of Quartus II VHDL, Verilog or Schematic design coding to develop design
Compilation / synthesis and simulation of design using Quartus II
Fit to the FPGA
Download to board and check operation
Use logic and real-time signal analysis capabilities built into the hardware for verification test

Altera, Cyclone II and Quartus are Registered Trade Marks of Altera Corp

Ordering Information

Ordering Information	Order Code: FPGA-TRAIN	Price: $189.00
Shipping to United States:	Recorded airmail - $18.50	Fedex Express - $32.50

No Replacement
